Biodex 846 C-Arm Table

  • Available New & Refurbished
  • Hospital Grade C-Arm / Imaging Table
  • Integrated Headrest or Rectangular Top Option
  • 3 Movement Table Ideal For Vascular Work
  • 500 lb Patient Weight Capacity
  • 2 Year Warranty (new only)


Biodex C-Arm Table Brochure

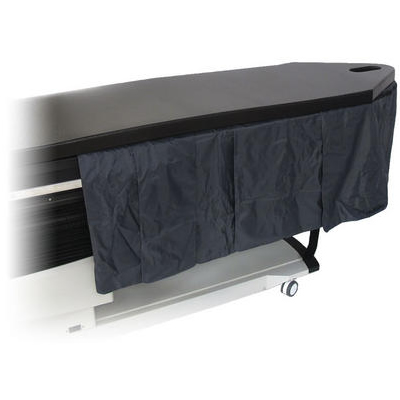

Free-float tabletop design with quick and comfortable patient positioning at an affordable price.

  • Low attenuation carbon fiber tabletop, with choice of standard contoured or
    rectangular design
  • Contoured tabletop features a face cutout for comfortable prone positioning
  • High-speed actuator for quick vertical movement
  • Convenient positioning with portable hand-held controller
  • Free-float X-Y tabletop
  • 500-lb patient capacity
  • Low profile base for C-Arm clearance
  • Accessory Rails

The Surgical C-Arm Table – 846 is designed for procedures where stability, access and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose a tabletop to best fit your needs to achieve optimum image resolution.

Its large radiolucent area, motorized actuation of height, and free-float tabletop make it ideal for both pain care and cardiovascular applications. The radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Two-inch thick table padding and three adjustable straps with hook and loop fastening assure patient comfort and stability. The contoured tabletop features a face cutout for comfortable prone positioning.

The Equipped MD Difference.

At Equipped MD we guarantee the best possible pricing on all Biodex products. We will meet or beat any competitors quote, and offer our “wholesale direct” pricing right out of the gate. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

  • Dimensions: 107″ l x 26″ w (272 x 66 cm) with OR accessory rails
  • Tabletop: 97″ l x 24″ w (246 x 61 cm) – choice of classic contoured or rectangular design
  • Radiolucent Area:
    – 39″ l x 24″ w (99 x 61 cm) unobstructed head to float rails
    – 36″ l x 17.5″ w (91 x 44 cm) additional, between float rails
    – 75″ l (191 cm) total length
  • Tabletop Material: Carbon Fiber with integral head section
  • Mattress: Seamless, 2″ thick (5 cm)
  • Attenuation:
    – Tabletop: .7 mm Aluminum equivalence
    – Mattress: .5 mm Aluminum equivalence
  • Motions:
    – Height: Adjustable from 32″ to 42″ (81 to 106 cm)
    – Tabletop X Motion (head-to-toe float): 35″ (89 cm)
    – Tabletop Y Motion (side-to-side float): 10″ (25.4 cm)
  • Controls:

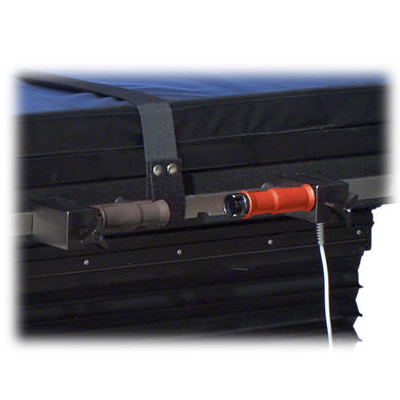

    – Hand Control: activates height
    – Push Button: releases X-Y Tabletop motions
  • Wheels:
    – Head End – 3″ (7.62 cm) swivel casters, integral locking system on base
    – Foot End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 49.5″ x 1.12″ x .375″ (124 x 2.86 x .95 cm) mounted near foot end of table
  • Patient Restraints: Three body straps
  • Patient Capacity: 500 lb (227 kg)
  • Lift Capacity: May vary between 460 lb – 500 lb (209 – 227 kg) based on line voltage
  • Finish: Stainless Steel
  • Power: 115 VAC or 230 VAC
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2
    No.: 601.1.M90, EN 60601-1, IEC 60601-2-46 and CE marked.
  • Warranty: Two years parts and labor

Additional information






Height Longitudinal Travel Lateral Travel
