Biodex 870 C-Arm Table

  • Available New & Refurbished
  • Hospital Grade C-Arm / Imaging Table
  • Two Top Options
  • 3 Movements
  • 500 lb Patient Weight Capacity
  • 2 Year Warranty (new only)

Brochures:

Biodex C-Arm Table Brochure

Description

Innovative design optimizes patient access, increases imaging resolution and save space.

  • Low attenuation carbon fiber tabletop, with choice of standard contoured or
    rectangular design
  • Contoured tabletop features a face cutout for comfortable prone positioning
  • High-speed actuators assure quick tabletop positioning; height adjustability, lateral roll and Trendelenburg motions
  • Convenient positioning controllers
  • Smooth starts and stops programmed into all motorized movements
  • 500-lb patient capacity
  • Low profile base for C-Arm clearance
  • Accessory rails

The Pain Management C-Arm Table – 870 is designed for image-guided procedures where stability, access, and precise, quiet, vibration-free positioning are essential. A cantilevered low attenuation carbon fiber tabletop, with choice of contoured or rectangular design, accommodates portable or ceiling-suspended C-Arms. The standard contoured top allows ample workspace for anesthesiologists, yet the narrowness required for cervical procedures. The rectangular top offers additional space to allow for superior image quality for long-leg runoff studies. Choose a tabletop to best fit your needs to achieve optimum image resolution.

The large radiolucent area is free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access with reduced radiation exposure to clinicians. Patient comfort and stability are assured by two-inch thick table padding and three adjustable straps with hook and loop fastening. The contoured tabletop features a face cutout for prone positioning.

The Equipped MD Difference.

At Equipped MD we guarantee the best possible pricing on all Biodex products. We will meet or beat any competitors quote, and offer our “wholesale direct” pricing right out of the gate. This allows us to offer you exceptional value, and custom tailor the pricing to your needs & budget. To learn the details and get in-depth pricing simply hit the request a quote button above or simply give us a call.

Specifications:
  • Dimensions: 104″ l x 26″ w (264 x 66 cm) with OR accessory rails
  • Tabletop: 97″ l x 24″ w (246 x 61 cm) – choice of classic contoured or rectangular design
  • Radiolucent Area:
    – 38.5″ l x 24″ w (99 x 61 cm) unobstructed head to accessory rail
    – 31.5″ l x 17.5″ w (80 x 44 cm) additional, between accessory rails
  • Radiolucent Area, Total Length: 70″ l (178 cm)
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2″ thick (5 cm)
  • Attenuation:
    – Tabletop: .7 mm Aluminum equivalence
    – Mattress: .5 mm Aluminum equivalence
  • Motions:
    – Height Adjustable: 29.5″ to 39.5″ (75 to 100 cm)
    – Trendelenburg: 0° to 20°
    – Reverse Trendelenburg: 0° to 20°
    – Lateral Roll: 15° clockwise or counterclockwise
  • Controls:
    – Hand Control: activates height, lateral roll and Trendelenburg motions

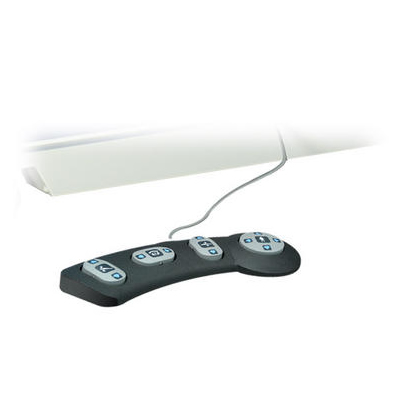

    – Foot Control (optional): activates height, lateral roll and Trendelenburg motions
  • Wheels:
    – Head End – 3″ (7.62 cm) swivel casters, integral locking system on base
    – Foot End – 5″ (12.7 cm) swivel casters with central locking
Specifications Cont:
  • Accessory Rails: Standard OR accessory rails 30″ x 1.12″ x .375″ (75 x 2.86 x .95 cm) mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Stainless Steel
  • Shipping Weight: 877 lb (397.8 kg)
  • Patient Capacity: 500 lb (227 kg)
  • Lift Capacity: May vary between 460 lb – 500 lb (209-227 kg) based on line voltage
  • Power: 115 VAC or 230 VAC
  • Certifications: ETL and cETL listed to UL 60601-1®, CAN/CSA© C22.2 No.: 601.1.M90, EN 60601-1, IEC 60601-1-2, IEC 60601-2-46 and CE marked.
  • Warranty: Two years parts and labor

Additional information

Brand

Biodex

Model

870

Movements

Height Trendelenburg Lateral Tilt
